USAUTOMATIC GATE OPENER REPAIR
Every USAutomatic gate operator is a low-voltage 12V DC system, powered by an AC transformer or a solar panel, which makes the whole lineup a good fit for off-grid and remote installations. That design also keeps the electronics simple to service. Our technicians repair and maintain all of these models, from the compact swing units to the RSL slide operator. Below you'll find details on the work we do for each specific USAutomatic model.
USAUTOMATIC SENTRY 300 REPAIR
USAutomatic Sentry 300 Repair - The Sentry 300 is a 12V DC swing operator for residential and light-commercial gates, running on either an AC transformer or a solar panel. It comes as the single-gate 300S or the dual-gate 300D and delivers roughly 400 lb of thrust, handling ornamental swing gates up to about 12 ft and farm gates up to around 20 ft, at approximately 400 lb per leaf. We handle motor diagnostics, control board replacement, actuator service, and full recalibration.
- Motor diagnostics and repair
- Control board replacement
- Sensor calibration
- Routine maintenance
- System recalibration
- Component replacement
- Safety checks
- Full system inspection
USAUTOMATIC PATRIOT 1 REPAIR
USAutomatic Patriot 1 Repair - The Patriot I is a 12V DC single-leaf swing operator powered by AC or solar. It drives swing gates up to about 16 ft and roughly 550 lb. The dual-leaf version, the Patriot II, uses the same control board, so parts and diagnostics carry over between them. We service the actuator, motor and gearbox, control board, and wiring, and recalibrate the system after any repair.
- Motor and gearbox repair
- System diagnostics
- Control board replacement
- Routine maintenance
- Sensor adjustment
- Component replacement
- System recalibration
- Safety checks
USAUTOMATIC PATRIOT RSL REPAIR
USAutomatic Patriot RSL Repair - The Patriot RSL is a slide operator, not a swing unit. RSL stands for Residential Slide, and it runs on 12V DC from AC or solar with battery backup. It moves slide gates up to about 32 ft of travel and up to roughly 1,000 lb, with soft start and soft stop, and it meets the UL325-2018 standard. We service the drive motor, gear and chain or rack, battery and charging circuit, and control electronics, then dial in the soft start/stop and safety settings.
- Motor diagnostics and repair
- Control system diagnostics
- Sensor calibration
- Routine maintenance
- System recalibration
- Component replacement
- Safety checks
- Full system inspection

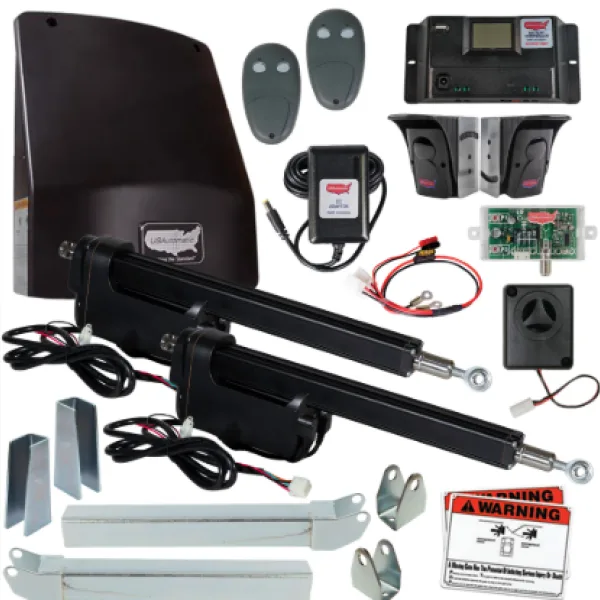

USAUTOMATIC RANGER 500 REPAIR
USAutomatic Ranger 500 Repair - The Ranger 500 is a 12V DC swing operator for residential and light-duty gates. It's solar-friendly, running around 65 cycles a day on a 10W panel, and also works on an AC transformer. It handles swing gates up to about 13 ft and roughly 400 lb. We repair the actuator and motor, service the solar and charging setup, replace the control board, and recalibrate the operator.
- Actuator motor repair
- Solar and charging diagnostics
- Control system troubleshooting
- Routine maintenance
- System recalibration
- Component replacement
- Safety checks
- Full system inspection

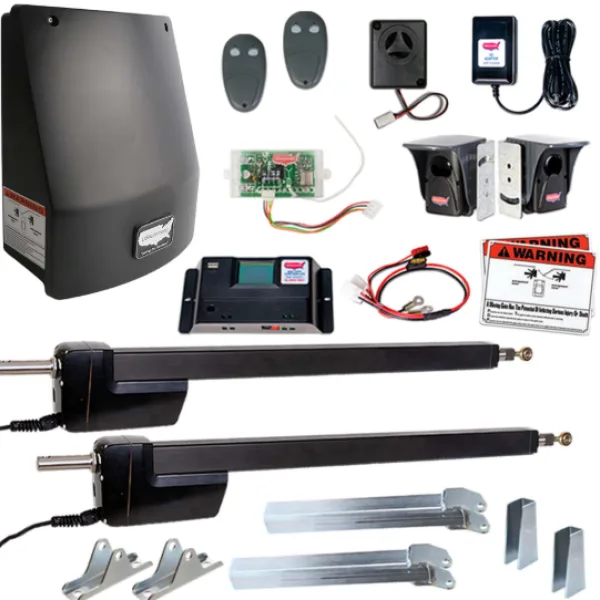

USAUTOMATIC RANGER HD REPAIR
USAutomatic Ranger HD Repair - The Ranger HD is the heavy-duty swing operator in the line, built for larger gates and for corrosive or coastal settings. It runs on 12V DC from AC or solar, uses a 24-inch stroke actuator, and comes as the single HD1 or dual HD2. It handles swing gates up to about 16 to 20 ft and roughly 800 lb, and ships in a metal cabinet. We service the long-stroke actuator, motor, and control board, address corrosion, and recalibrate the operator.
- Heavy-duty actuator repair
- Corrosion and cabinet service
- Electronic control repairs
- Routine system checks
- System recalibration
- Component replacement
- Safety checks
- Full system inspection
USAUTOMATIC MODEL LIST
We repair the full USAutomatic lineup. Every one of these is a 12V DC operator that runs on an AC transformer or a solar panel:
- Swing: Sentry 300 (300S / 300D)
- Swing: Patriot I / Patriot II
- Swing: Ranger 500
- Swing: Ranger HD (HD1 / HD2)
- Slide: Patriot RSL
- Electronics: Patriot control board
- Electronics: LCR receiver (433.92 MHz)
If your USAutomatic model isn't listed here, call us at 510-458-2048 and we'll help you sort out the repair.
